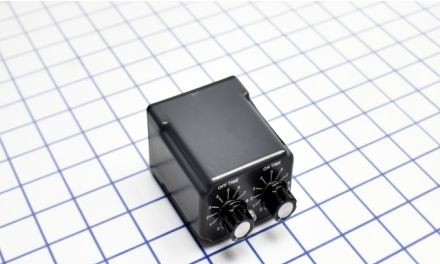

334-L-300SEC
Manufacturer Brand
MFG Item Number: 334-L-300SEC
Strike SKU: 98086904
Time Mark Relays - Delayd 1Shot Timer contacts: DPDT max_time: 300 s mounting: Socket
Specifications
- contacts
- DPDT
- max time
- 300 s
- mounting
- Socket
- Manufacturer Part Number
- 98086904
- Manufacturer
- Time Mark
- Family Series
- Time Mark Relays
- Operation
- Delayed One-Shot Timer
- Status Indicator
- LED
- Time Range Adjustment
- Onboard
- Adjustment Operator
- Knob
- Timing Range
- 1-300 s
- Coil Voltage
- 10-28 VAC, 10-28 VDC
- Nominal Coil Voltage
- 12 VAC, 24 VAC, 12 VDC, 24 VDC
- AC Voltage
- 10-28 VAC
- DC Voltage
- 10-28 VDC
- Contact Rating
- 10 A
- Termination
- 8 Pin
- Approvals
- CSA, UL
- H x W x D
- 1.90 " x 2.45 " x 3.95 "
- Net Weight
- 0.28 lbs
- Gross Weight
- 0.34 lbs
Product Sourcing Notes
334-L-300SEC is listed for Time Mark and described as Delayd 1Shot Timer in Relays . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 334-L-300SEC
- Strike SKU: 98086904
- Manufacturer: Time Mark
- Catalog family: Relays
- Availability: in stock with 2 available
