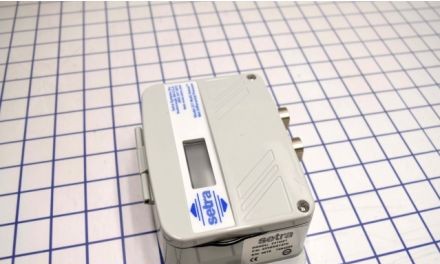

*Image shown is a representation only. Actual product may vary.
231GMS12FD
Manufacturer Brand
MFG Item Number: 231GMS12FD
Setra HVAC Sensors, 231 Series - Wet-to-Wet Differential, Multi-Configurable Pressure Transducer 5, 10, 25
Specifications
- output
- 4-20 mA
- series
- 231
- voltage
- 15-30 VDC
- Manufacturer Part Number
- 231GMS12FD
- Manufacturer
- Setra
- Family Series
- Setra HVAC Sensors, 231 Series
- Pressure Range
- 5-50 psi
- Connection
- 1/8-18 NPT Internal
- Sensor Style
- Differential
- Maximum Pressure
- 50 psi
- Electrical Connection
- 1/2 in Conduit
- Operating Temperature
- -4-185 °F
- NEMA Rating
- NEMA 4
- Protection Rating
- IP65
- Approvals
- CE
- H x W x D
- 2.00 " x 4.80 " x 6.00 "
- Net Weight
- 1.53 lbs
- Gross Weight
- 1.72 lbs
Product Sourcing Notes
231GMS12FD is listed for Setra and described as Wet-to-Wet Differential, Multi-Configurable in HVAC Sensors . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 231GMS12FD
- Manufacturer: Setra
- Catalog family: HVAC Sensors
- Availability: in stock with 1 available
