Specifications
- series
- 309
- voltage
- 240 V
- material
- Non-Metallic
- Manufacturer Part Number
- ME360R6W
- Manufacturer
- Mennekes Electrical Products
- Family Series
- Mennekes Electrical Products Plugs & Receptacles, 309 Series
- Connection Type
- Receptacle
- Current Rating
- 60 A
- Number of Poles
- 2
- Number of Wires
- 3
- Lockout-Tagout
- No
- Auxiliary Contact
- None
- Built-In Strain Relief
- No
- Wire Size Range
- 8 AWG, 7 AWG, 6 AWG, 5 AWG, 4 AWG
- Protection Rating
- IP67
- Terminal Type
- Screw
- Approvals
- CSA, IEC, UL
- H x W x D
- 5.35 " x 4.40 " x 4.65 "
- Net Weight
- 1.33 lbs
- Gross Weight
- 1.645 lbs
Product Sourcing Notes

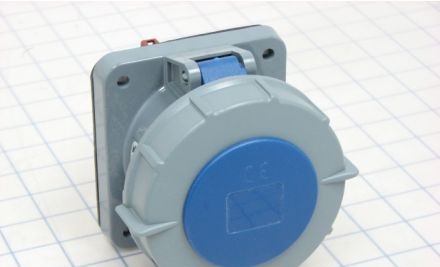

ME360R6W is listed for Mennekes Electrical Products and described as Receptacle, 60A, 2P-3W, 250V, Watertight, Blue in Plugs & Receptacles . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: ME360R6W
- Manufacturer: Mennekes Electrical Products
- Catalog family: Plugs & Receptacles
- Availability: in stock with 3 available
