Specifications
- color
- Black
- series
- 145
- mounting
- Panel Mount
- Manufacturer Part Number
- 1452552
- Manufacturer
- Marathon Special Products
- Family Series
- Marathon Special Products Power Distribution Blocks, 145 Series
- Number of Poles
- 2
- AC Voltage
- 600 VAC
- Current Rating
- 380 A
- Number of Inputs per Pole
- 1
- Number of Outputs per Pole
- 12
- Electrical Connection
- Box Lug/Box Lug
- Line Side Wire Range
- 500 kcmil-4 AWG
- Output Wire Range
- 2-14 AWG
- Cover Included
- No
- Composition
- Phenolic
- Approvals
- CE, CSA, UL
- H x W x D
- 4.00 " x 5.45 " x 5.50 "
- Net Weight
- 1.735 lbs
- Gross Weight
- 1.735 lbs
Product Sourcing Notes

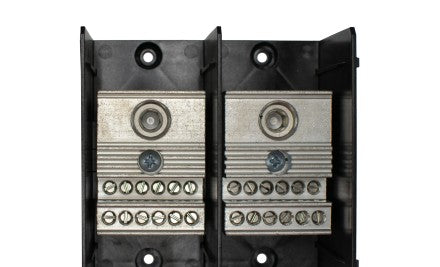

1452552 is listed for Marathon Special Products and described as DISTRIBUTION BLOCK, 2-P, 380A, BX/BX LINE in Power Distribution Blocks . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 1452552
- Manufacturer: Marathon Special Products
- Catalog family: Power Distribution Blocks
- Availability: in stock with 6 available
