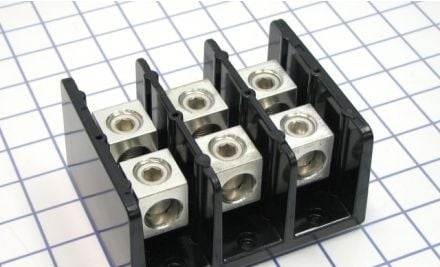

*Image shown is a representation only. Actual product may vary.
Specifications
- color
- Black
- series
- 143
- mounting
- Panel Mount
- Manufacturer Part Number
- 1433126
- Manufacturer
- Marathon Special Products
- Family Series
- Marathon Special Products Power Distribution Blocks, 143 Series
- Number of Poles
- 3
- AC Voltage
- 600 VAC
- Current Rating
- 310 A
- Number of Inputs per Pole
- 1
- Number of Outputs per Pole
- 1
- Electrical Connection
- Box Lug/Box Lug
- Line Side Wire Range
- 350 kcmil-6 AWG
- Output Wire Range
- 350 kcmil-6 AWG
- Cover Included
- No
- Composition
- Phenolic
- Approvals
- CE, CSA, UL
- H x W x D
- 2.61 " x 4.00 " x 5.00 "
- Net Weight
- 1.56 lbs
- Gross Weight
- 1.56 lbs
Product Sourcing Notes
1433126 is listed for Marathon Special Products and described as Splicer Block, 3-P, 310A, Box/Box, Line & Load in Power Distribution Blocks . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 1433126
- Manufacturer: Marathon Special Products
- Catalog family: Power Distribution Blocks
- Availability: in stock with 3 available
