*Image shown is a representation only. Actual product may vary.
Specifications
- color
- Black
- series
- 133
- mounting
- Panel Mount
- Country of Origin
- United States
- Manufacturer Part Number
- 1333588
- Manufacturer
- Marathon Special Products
- Family Series
- Marathon Special Products Power Distribution Blocks, 133 Series
- Number of Poles
- 3
- AC Voltage
- 600 VAC
- Current Rating
- 420 A
- Number of Inputs per Pole
- 1
- Number of Outputs per Pole
- 9
- Electrical Connection
- Box Lug/Box Lug
- Line Side Wire Range
- 600 kcmil-2 AWG
- Output Wire Range
- (6) 2-14 AWG; (3) 1/0-14 AWG
- Cover Included
- No
- Composition
- Thermoplastic
- Approvals
- CE, CSA, UL
- H x W x D
- 3.35 " x 4.00 " x 5.30 "
- Net Weight
- 1.965 lbs
- Gross Weight
- 2.085 lbs
Official Manufacturer Resources
Product Sourcing Notes

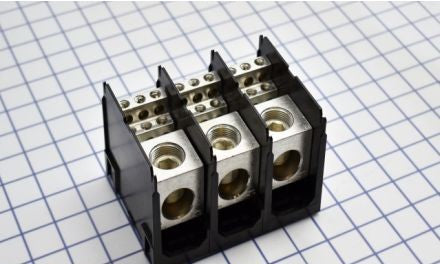

1333588 is listed for Marathon Special Products and described as Distribution Block, 3-P, 420A, Bx/Bx Line in Power Distribution Blocks . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 1333588
- Manufacturer: Marathon Special Products
- Catalog family: Power Distribution Blocks
- Availability: in stock with 3 available
