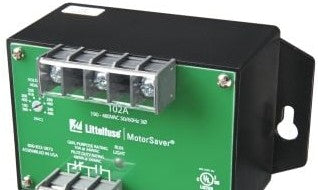

*Image shown is a representation only. Actual product may vary.
102A
Manufacturer Brand
MFG Item Number: 102A
Littelfuse Protection Relays, 102A Series - Monitor Relay, 190-480V 3-Ph, Autoranging, Panel Mount
Specifications
- phase
- 3
- series
- 102A
- voltage
- 190-480 V
- detection
- Phase Loss
- Country of Origin
- Mexico
- Manufacturer Part Number
- 102A
- Manufacturer
- Littelfuse
- Family Series
- Littelfuse Protection Relays, 102A Series
- Current Rating
- 10 A
- Hi Pwr (Over Vltg) Trip
- Yes
- Variable Point Trip
- Yes
- Voltage Unbalance %
- 6 %
- Time Delay Trip (Sec)
- 4 s
- Restart Delay (Sec)
- 2 s
- Var Restart Delay
- Yes
- Type of Display
- LED Status Indicator
- H x W x D
- 3.00 " x 2.90 " x 5.25 "
- Net Weight
- 0.695 lbs
- Gross Weight
- 1.025 lbs
Product Sourcing Notes
102A is listed for Littelfuse and described as Monitor Relay, 190-480V 3-Ph, Autoranging, Panel in Protection Relays . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 102A
- Manufacturer: Littelfuse
- Catalog family: Protection Relays
- Availability: in stock with 8 available
