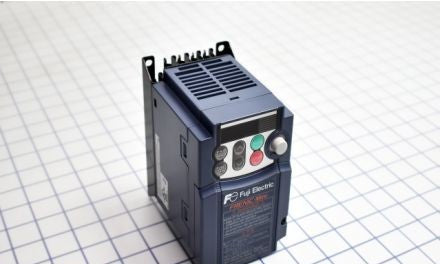

*Image shown is a representation only. Actual product may vary.
Specifications
- brake
- DC Injection, Dynamic Braking Transistor Included
- hp ct
- 0.5 hp
- phase
- 1
- series
- MINI
- amps ct
- 2.5 A
- comments
- New firmware for permanent magnet motors. Built in RS485 port w/ standard Modbus RTU communication.
- Manufacturer Part Number
- FRN0003C2S-6U
- Manufacturer
- Fuji
- Family Series
- Fuji Drives, MINI Series
- HP (Constant Torque Rating)
- 0.5 hp
- Amps (Constant Torque Rating)
- 2.5 A
- Closed Loop
- No
- AC Line Regenerative
- No
- Operator Controls
- Built In
- Motor Control-Max Level
- V/Hz (Scalar)
- Mounting
- Panel
- Nominal Input Voltage
- 120 VAC
- AC Voltage
- 100-120 VAC
- Frequency
- 400 Hz
- Protection Rating
- IP20
- Dynamic Braking
- Included
- H x W x D
- 4.55 " x 3.15 " x 4.70 "
- Net Weight
- 1.485 lbs
- Gross Weight
- 2.345 lbs
- depth
- 4.53 "
- width
- 3.15 "
- height
- 4.72 "
Product Sourcing Notes
FRN0003C2S-6U is listed for Fuji and described as Drive, AC, 0.5HP, 240V, 2.5A, CT, OP 120Vin in Drives . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: FRN0003C2S-6U
- Manufacturer: Fuji
- Catalog family: Drives
- Availability: in stock with 1 available
