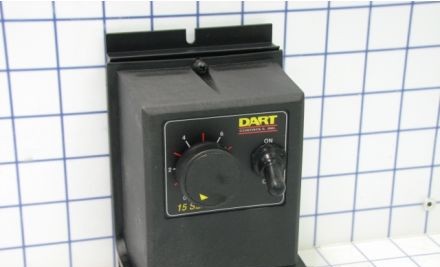

*Image shown is a representation only. Actual product may vary.
15DVE
Manufacturer Brand
MFG Item Number: 15DVE
Dart Controls Drives, 15 Series - Drive, DC, 2A, 120/240VAC
Specifications
- phase
- 1
- regen
- No
- series
- 15
- feedback
- Armature
- Manufacturer Part Number
- 15DVE
- Manufacturer
- Dart Controls
- Family Series
- Dart Controls Drives, 15 Series
- AC Voltage
- 108-132 VAC, 216-264 VAC
- Input Current
- 3.9 A
- Output Armature Voltage (DC)
- 90 VDC, 180 VDC
- Output Field Current (DC)
- 1 A
- Operating Temperature
- 14-113 °F
- Max Armature Current (DC)
- 3 A
- Nominal Input Voltage
- 120 VAC, 240 VAC
- Output Field VDC
- 100 VDC, 200 VDC
- Operator Controls
- Built In
- NEMA Rating
- NEMA 4, NEMA 12
- Approvals
- CE, cUL, UL
- Nominal Armature VDC
- 90 VDC, 180 VDC
- H x W x D
- 4.00 " x 6.50 " x 7.75 "
- Net Weight
- 1.27 lbs
- Gross Weight
- 1.27 lbs
Product Sourcing Notes
15DVE is listed for Dart Controls and described as Drive, DC, 2A, 120/240VAC, 0-90VDC or 0-180VDC in Drives . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 15DVE
- Manufacturer: Dart Controls
- Catalog family: Drives
- Availability: in stock with 3 available
