Product overview

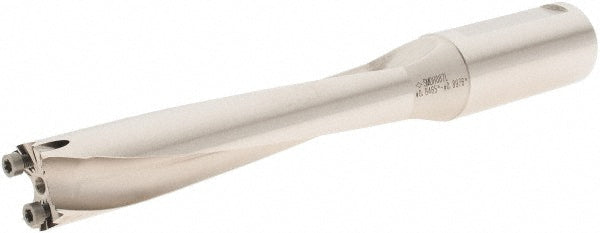

Uses SMDT Inserts, 7.8740" OAL, Coolant Through
Manufacturer
Sumitomo
Part number
5L00W0Y
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.8469 |
|---|---|
| Minimum Drill Diameter (mm) | 21.51 |
| Maximum Drill Diameter (mm) | 22.80 |
| Maximum Drill Diameter (Decimal Inch) | 0.8976 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.8820 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SMDT |
| Overall Length (Decimal Inch) | 7.8740 |
| Series | SMD |
| Toolholder Style | SMDH |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| Mfr# | 5L00W0Y |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
5L00W0Y is listed for Sumitomo and described as 5L00W0Y Sumitomo Replaceable-Tip Drill: 21.51 mm to 22.80 in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 5L00W0Y
- Manufacturer: Sumitomo
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 2 available
