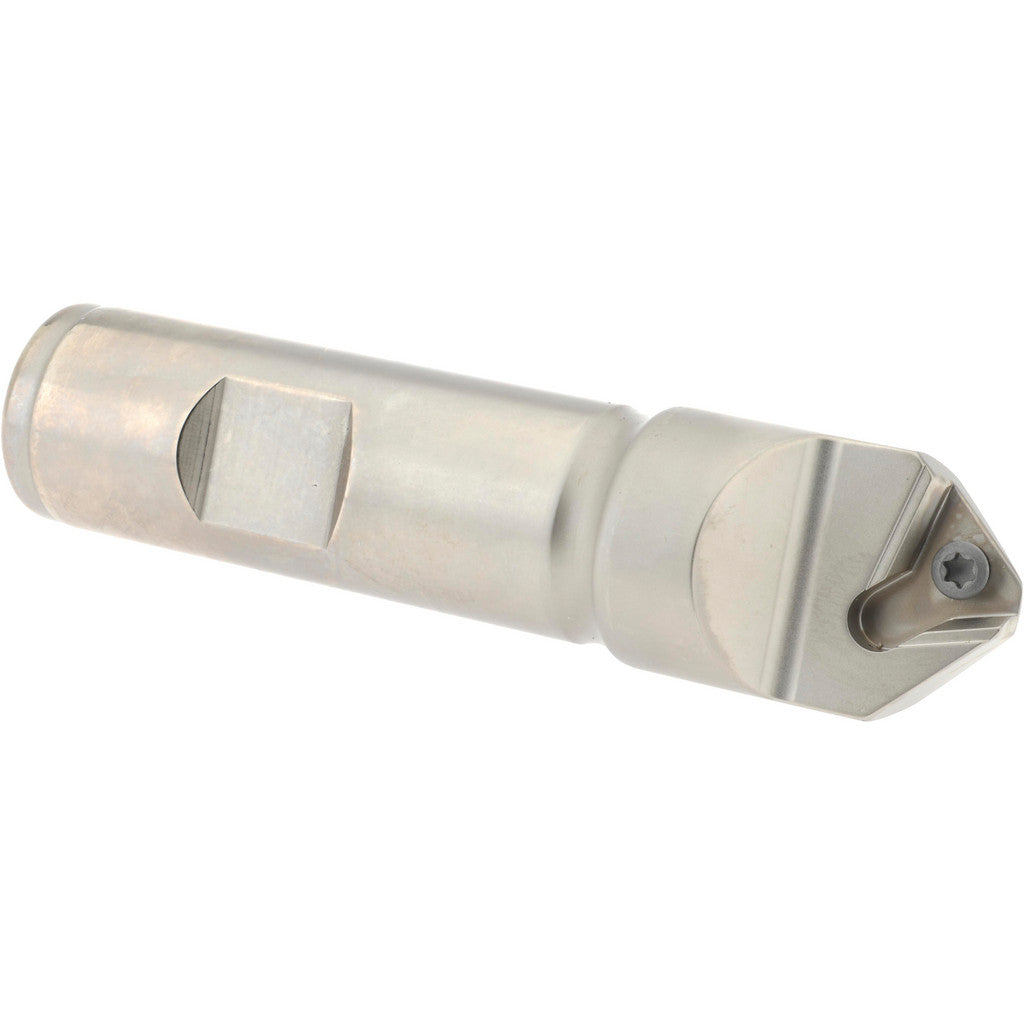

*Image shown is a representation only. Actual product may vary.
Product overview
3/4" Shank Dia, 3-1/2" OAL, Uses TFLT 15 Inserts
Manufacturer
Ingersoll Cutting Tools
Part number
3207688
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Drill Type | Spotting Drill |
|---|---|
| Drill Diameter (Decimal Inch) | 0.8420 |
| Drill Diameter | 0.8420 in |
| Drill Bit Point Angle | 90 |
| Shank Type | Weldon Flat |
| Shank Diameter (Fractional Inch) | 3/4 |
| Shank Diameter | 0.7500 |
| Number of Drill Inserts | 1 |
| Compatible Insert Style | TFLT |
| Compatible Insert Size Code | 15T308 |
| Tool Material | Steel |
| Coated | Uncoated |
| Overall Length | 3.5000 |
| Through Coolant | No |
| Coolant Entry Style Code | 0-Without Coolant |
| Maximum Depth Of Cut | 0.2000 in |
| Cutting Direction | Right Hand |
| Series | FAK |
| Number Of Flutes | 1 |
| Flute Type | Straight |
| Tool Application | Spotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23291500 |
| Country of Origin | UNITED STATES |
| Mfr# | 3207688 |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
3207688 is listed for Ingersoll Cutting Tools and described as 3207688 Ingersoll Cutting Tools 0.842" 90° Indexable in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 3207688
- Manufacturer: Ingersoll Cutting Tools
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 3 available
