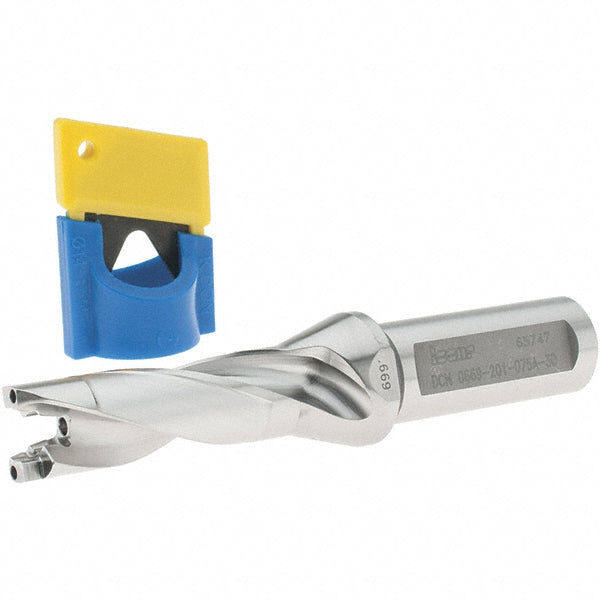

*Image shown is a representation only. Actual product may vary.
Product overview
Uses FCP, HCP-IQ, ICG, ICK, ICK-2M, ICM, ICN, ICP, ICP-2M & QCP-2M Inserts, Seat Size 17, 5.0400" OAL, Coolant Through
Manufacturer
Iscar
Part number
3202488
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6690 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.7080 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.1100 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Seat Size | 17 |
| Compatible Insert Style | ICK; FCP; HCP-IQ; ICM; ICK-2M; ICP-2M; ICN; ICP; QCP-2M; ICG |
| Overall Length (Decimal Inch) | 5.0400 |
| Series | SumoCham |
| Toolholder Style | DCN A-3D |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| Mfr# | 3202488 |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
3202488 is listed for Iscar and described as 3202488 Iscar Replaceable-Tip Drill: 0.6690" to 0.7080" in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 3202488
- Manufacturer: Iscar
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 2 available
