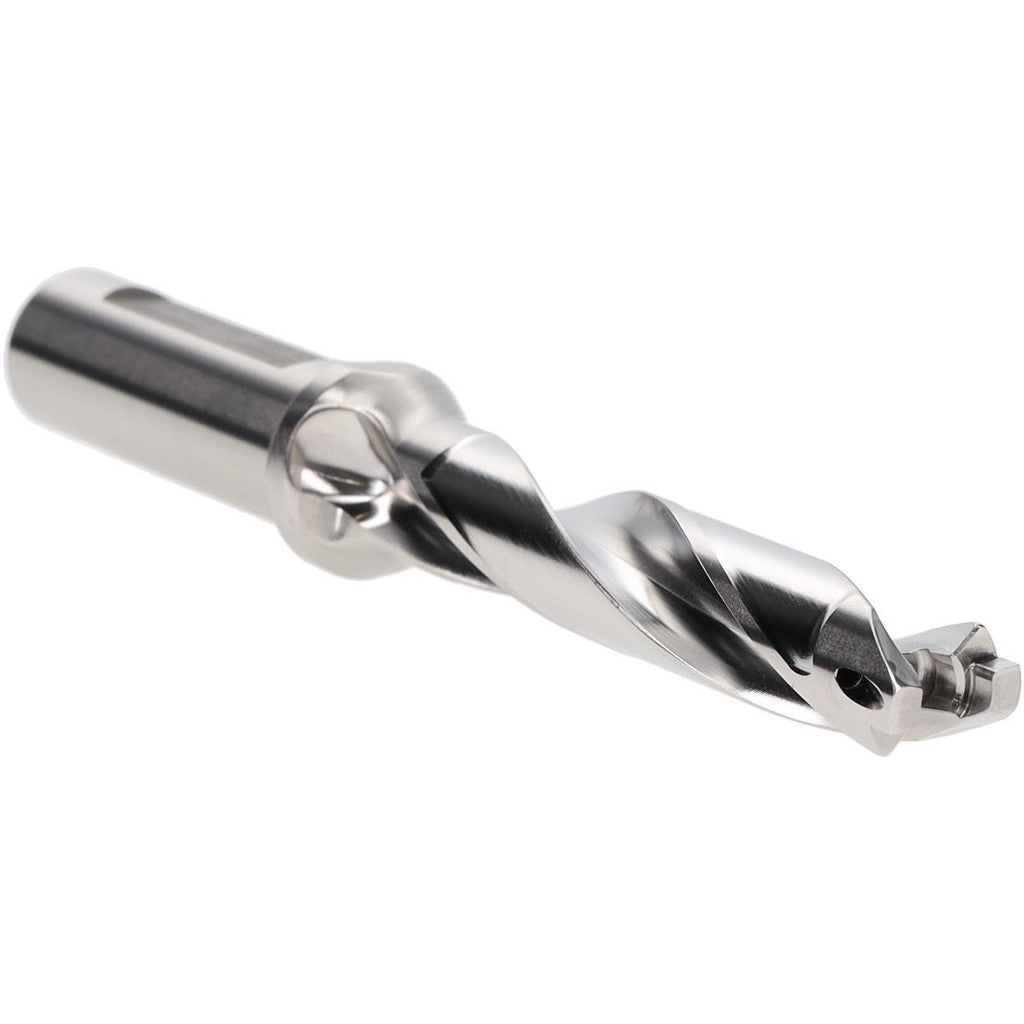

*Image shown is a representation only. Actual product may vary.
Product overview
Uses FCP, HCP-IQ, ICK, ICK-2M, ICM, ICN, ICP, ICP-2M & QCP-2M Inserts, Seat Size 13, 5.2400" OAL, Coolant Through
Manufacturer
Iscar
Part number
3202458
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5310 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5500 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.7380 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 13 |
| Compatible Insert Style | ICK; FCP; HCP-IQ; ICM; ICK-2M; ICP-2M; ICN; ICP; QCP-2M |
| Overall Length (Decimal Inch) | 5.2400 |
| Series | SumoCham |
| Toolholder Style | DCN A-5D |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| Mfr# | 3202458 |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
3202458 is listed for Iscar and described as 3202458 Iscar Replaceable-Tip Drill: 0.5310" to 0.5500" in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 3202458
- Manufacturer: Iscar
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 3 available
