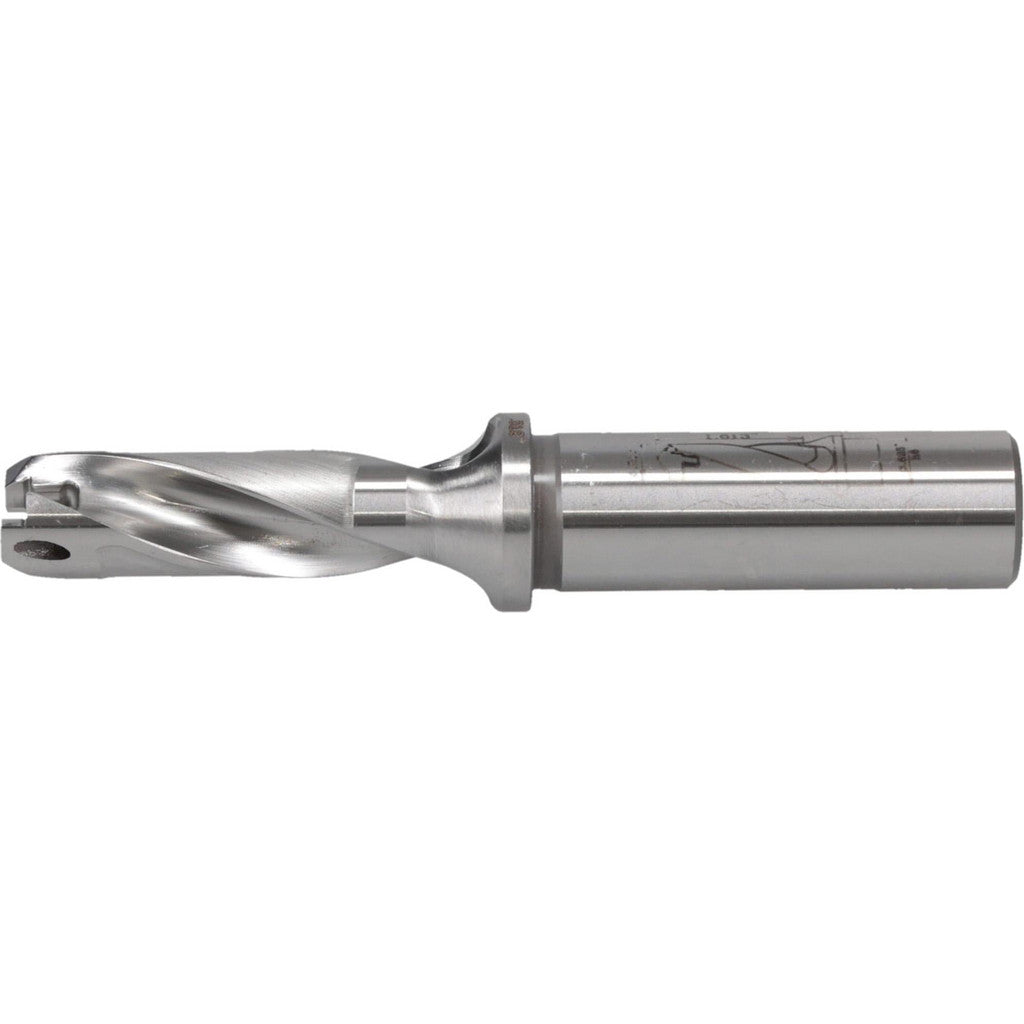

*Image shown is a representation only. Actual product may vary.
Product overview
Uses FCP, ICK, ICK-2M, ICM, ICP & iCP-2M Inserts, Seat Size 13, 4.1200" OAL, Coolant Through
Manufacturer
Iscar
Part number
3202446
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5120 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5280 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.5300 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 13 |
| Compatible Insert Style | ICK; iCP-2M; FCP; ICM; ICK-2M; ICP |
| Overall Length (Decimal Inch) | 4.1200 |
| Series | SumoCham |
| Toolholder Style | DCN |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| Mfr# | 3202446 |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
3202446 is listed for Iscar and described as 3202446 Iscar Replaceable-Tip Drill: 0.5120" to 0.5280" in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 3202446
- Manufacturer: Iscar
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 3 available
