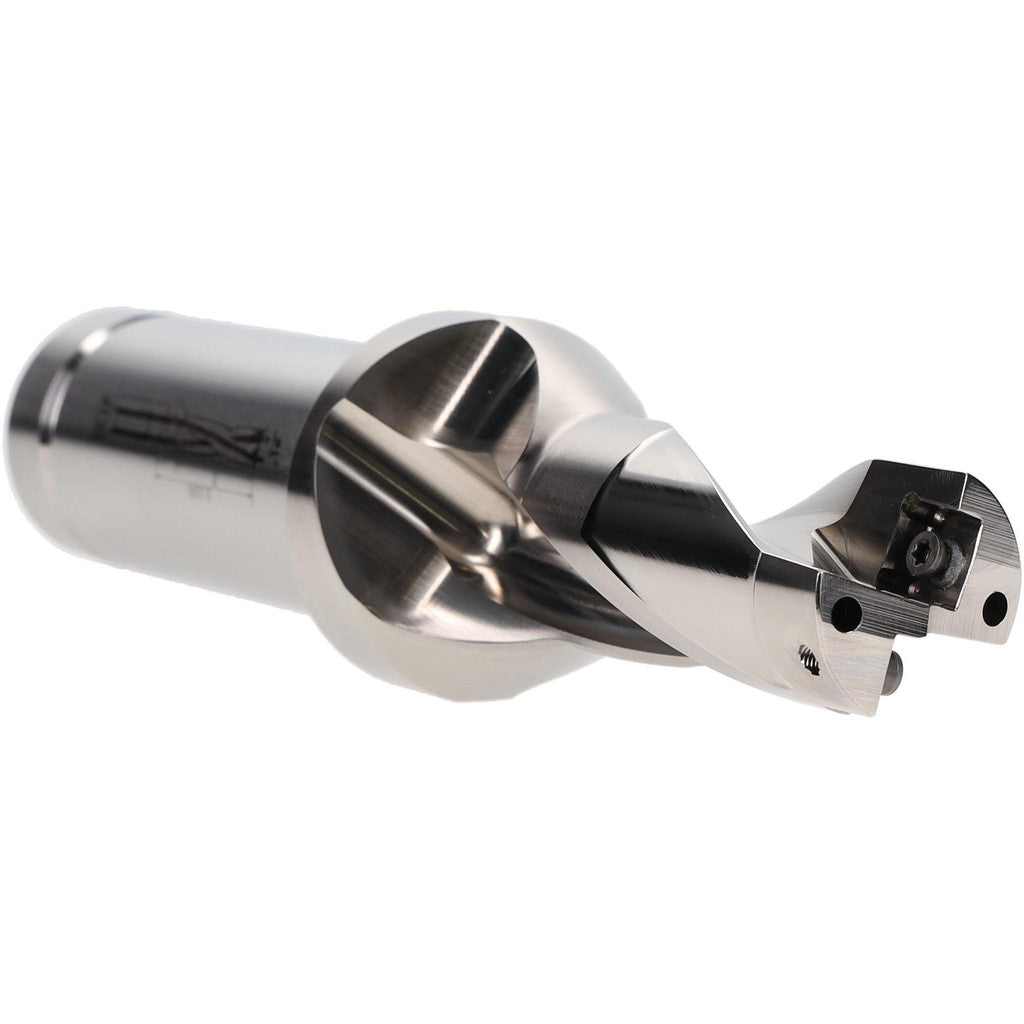

• Iscar 3201795 Iscar Indexable Insert Drill: DR1000-2000-125-09-2DN, 1" Max Dia, 2" (3201795)
1 1

*Image shown is a representation only. Actual product may vary.

3201795

MFG Item Number: 3201795

Product overview Weldon Flat Flange Shank, Uses SOMT 09T306 Inserts

$690.03 each
In stock - 1 available
Ships Within 2 Days

Ships from: Michigan, United States

Need more than what's in stock? Request a quote

View full details

Product overview

Weldon Flat Flange Shank, Uses SOMT 09T306 Inserts, Series DR-2D-N

Manufacturer
Iscar
Part number
3201795
Condition
New

Review the specifications below to confirm compatibility with your application.

Specifications

Compatible Drill Style DR
Maximum Drill Diameter (Inch) 1
Maximum Drill Diameter (Decimal Inch) 1.1610
Maximum Drill Depth (Inch) 2
Maximum Drill Depth (Decimal Inch) 2.0000
Shank Type Flange; Weldon Flat
Shank Diameter (Inch) 1-1/4
Shank Diameter (Decimal Inch) 1.2500
Number of Drill Inserts 2
Cutting Direction Right Hand
Maximum Drill Depth Range (Decimal Inch) 2.0000 to 3.0000
Tool Material Steel
Compatible Insert Style SOMT
Compatible Insert Size Code 09T306
Drill Depth by Diameter Ratio 2xD
Coolant Entry Style Code 3- Axial Concentric & Radial
Overall Length (Decimal Inch) 6.3000
Series DR-2D-N
Flute Length (Decimal Inch) 2.0000
Body Length (Decimal Inch) 3.3000
Shank Length (Decimal Inch) 3.0000
Neck Diameter (Inch) 1.6540
Modular Connection Size 1-1/4 in
Coolant Hole Thread Size "1/16-27 NPT"
Tool Application Drilling
Tool Performance General Purpose
Insert Size (Decimal Inch) 0.3540
UNSPSC Code 23291503
Insert Compatibility SOMT09T306
Collar Diameter (Decimal Inch) 1.6540
Body Side Coolant Hole Thread Size (Inch) 1/16-27
Shank End Coolant Hole Thread Size (Inch) 1/2-14
Insert Lock Screw SR 34-506 M3X0.5
Coolant Through Yes
Country of Origin Israel
Mfr# 3201795

Please confirm the manufacturer part number and specifications before ordering.
