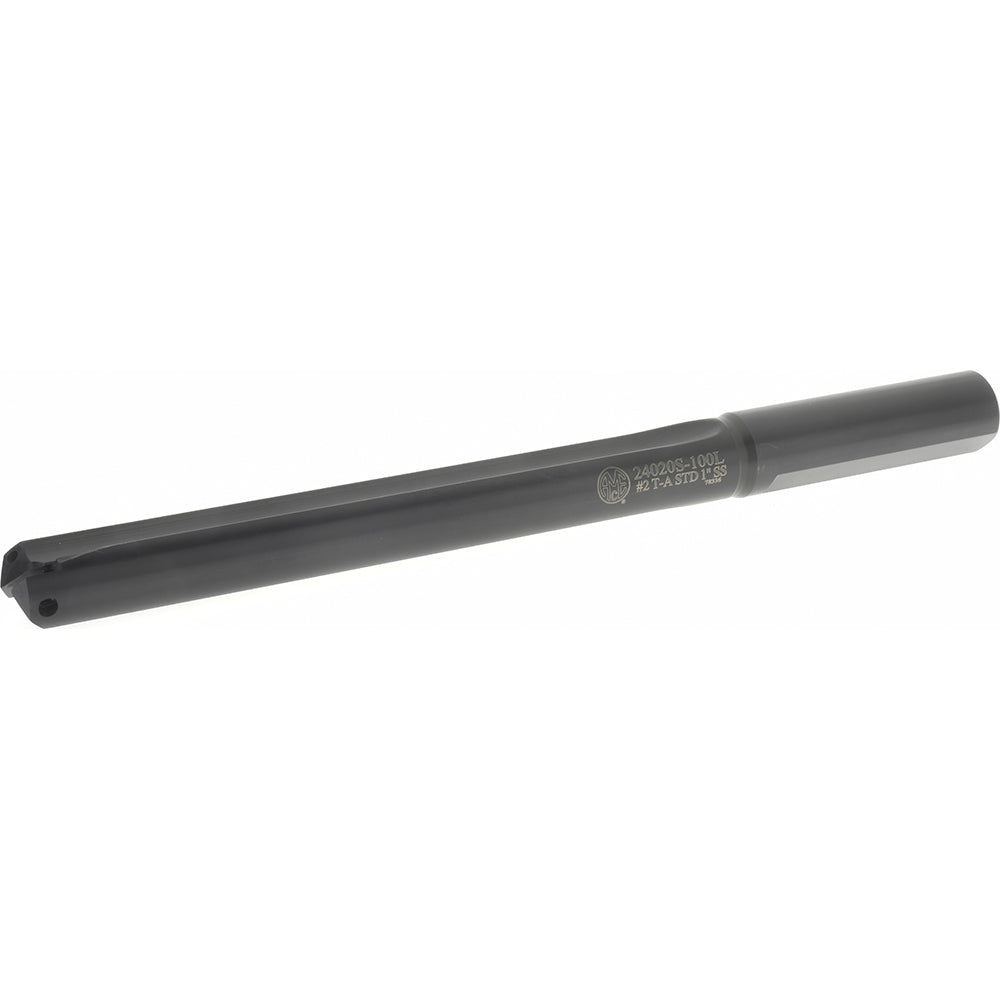

*Image shown is a representation only. Actual product may vary.
Product overview
1" Dia Flatted Shank, 8-1/2" Body Length, 7-3/8" Flute Length, 12" OAL, Coolant Through, Series T-A 2
Manufacturer
Allied Machine and Engineering
Part number
24020S-100L
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Inch) | 31/32 |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Depth (Inch) | 7-3/8 |
| Spade Drill Length | Standard |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Length Type | Standard |
| Tool Material | Steel |
| Overall Length (Inch) | 12 |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Series | T-A 2 |
| Flute Type | Straight |
| Flute Length (Inch) | 7-3/8 |
| Body Length (Inch) | 8-1/2 |
| Shank Length (Inch) | 3-1/2 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | VARIOUS |
| Mfr# | 24020S-100L |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
24020S-100L is listed for Allied Machine and Engineering and described as 24020S-100L Allied Machine and Engineering Indexable in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 24020S-100L
- Manufacturer: Allied Machine and Engineering
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 4 available
