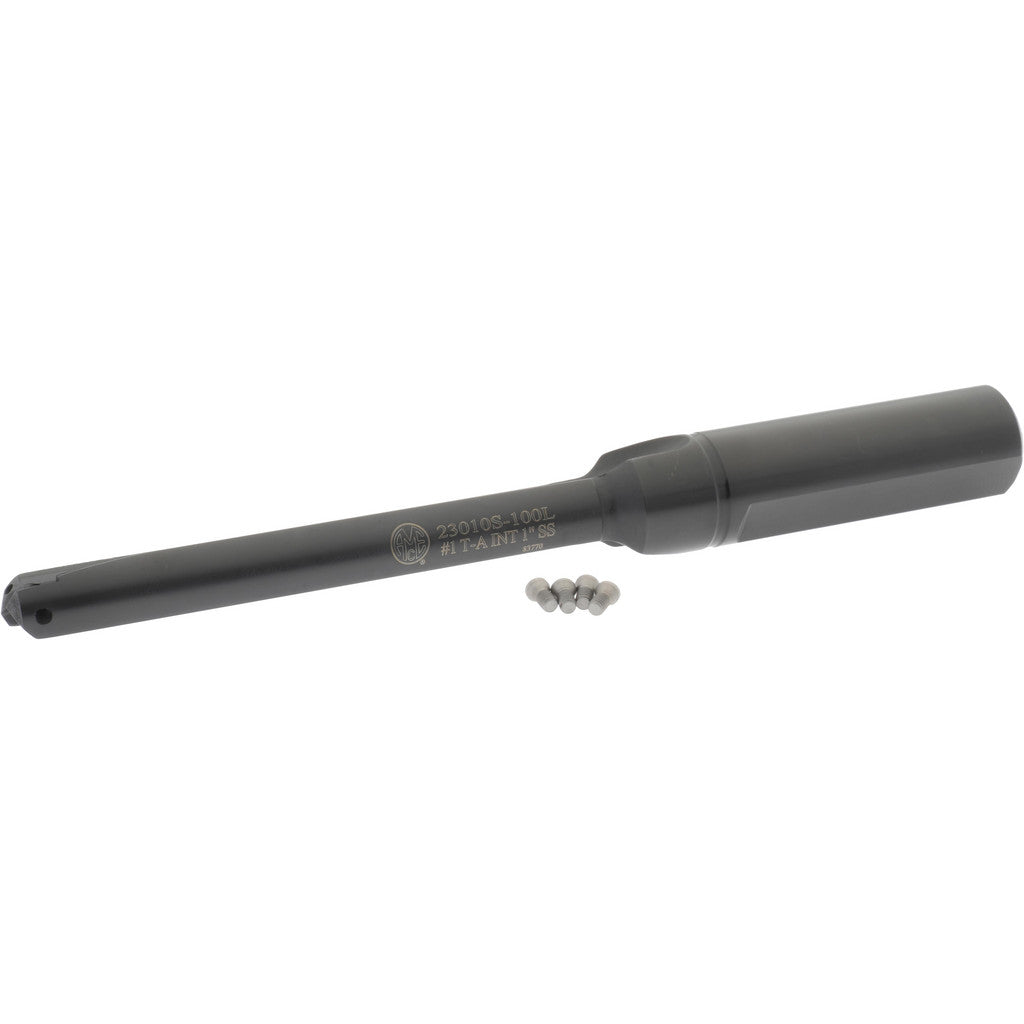

*Image shown is a representation only. Actual product may vary.
Product overview
1" Dia Flatted Shank, 5-7/8" Body Length, 4-5/8" Flute Length, 8-7/8" OAL, Coolant Through, Series T-A 1
Manufacturer
Allied Machine and Engineering
Part number
23010S-100L
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Inch) | 45/64 |
|---|---|
| Maximum Drill Diameter (Inch) | 15/16 |
| Maximum Drill Depth (Inch) | 4-5/8 |
| Spade Drill Length | Intermediate |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Length Type | Intermediate |
| Tool Material | Steel |
| Overall Length (Inch) | 8-7/8 |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Series | T-A 1 |
| Flute Type | Straight |
| Flute Length (Inch) | 4-5/8 |
| Body Length (Inch) | 5-7/8 |
| Shank Length (Inch) | 3 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
| Mfr# | 23010S-100L |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
23010S-100L is listed for Allied Machine and Engineering and described as 23010S-100L Allied Machine and Engineering Indexable in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 23010S-100L
- Manufacturer: Allied Machine and Engineering
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 4 available
