Product overview

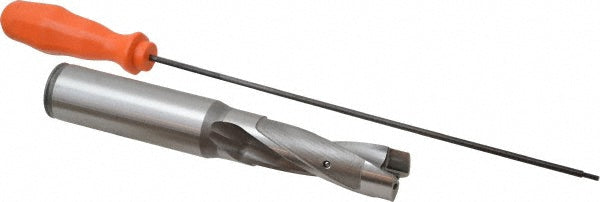

Uses KSEM0875 Inserts, Seat Size 4, 6.6300" OAL, Coolant Through
Manufacturer
Kennametal
Part number
2238547
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.8752 |
|---|---|
| Minimum Drill Diameter (mm) | 22.23 |
| Maximum Drill Diameter (mm) | 22.73 |
| Maximum Drill Diameter (Decimal Inch) | 0.8949 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 66.68 |
| Maximum Drill Depth (Decimal Inch) | 2.6300 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 4 |
| Shank Diameter (mm) | 25.40 |
| Compatible Insert Style | KSEM0875 |
| Overall Length (Decimal Inch) | 6.6300 |
| Series | KSEM |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| Mfr# | 2238547 |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
2238547 is listed for Kennametal and described as 2238547 Kennametal Replaceable-Tip Drill: 22.23 mm to 22.73 in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 2238547
- Manufacturer: Kennametal
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 2 available
