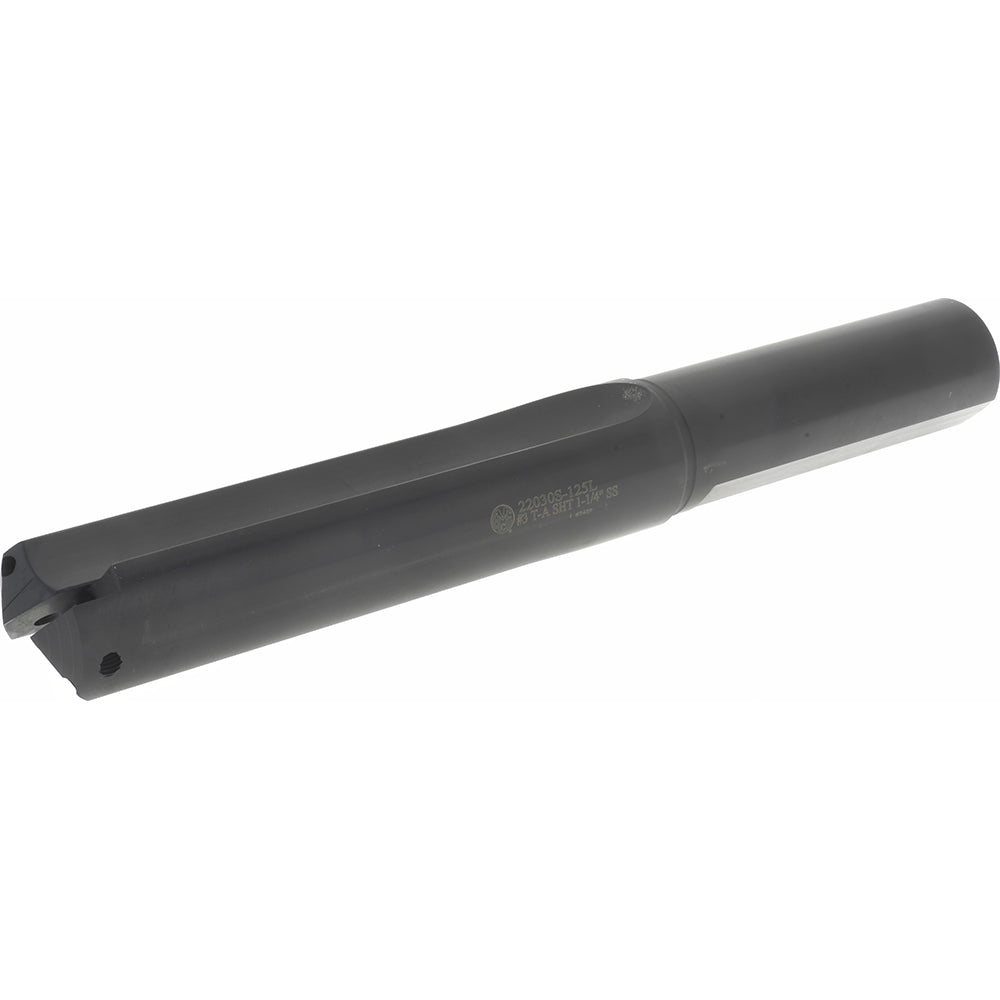

*Image shown is a representation only. Actual product may vary.
Product overview
1-1/4" Dia Flatted Shank, 6" Body Length, 4-3/4" Flute Length, 10" OAL, Coolant Through, Series T-A 3
Manufacturer
Allied Machine and Engineering
Part number
22030S-125L
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Inch) | 1-13/32 |
|---|---|
| Maximum Drill Diameter (Inch) | 1-7/8 |
| Maximum Drill Depth (Inch) | 4-3/4 |
| Spade Drill Length | Short |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Length Type | Short |
| Tool Material | Steel |
| Overall Length (Inch) | 10 |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Series | T-A 3 |
| Flute Type | Straight |
| Flute Length (Inch) | 4-3/4 |
| Body Length (Inch) | 6 |
| Shank Length (Inch) | 4 |
| Tool Performance | General Purpose |
| Coolant Hole Thread Size | 1/4 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
| UNSPSC Code | 23241600 |
| Country of Origin | VARIOUS |
| Mfr# | 22030S-125L |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
22030S-125L is listed for Allied Machine and Engineering and described as 22030S-125L Allied Machine and Engineering Indexable in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 22030S-125L
- Manufacturer: Allied Machine and Engineering
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 3 available
