Product overview

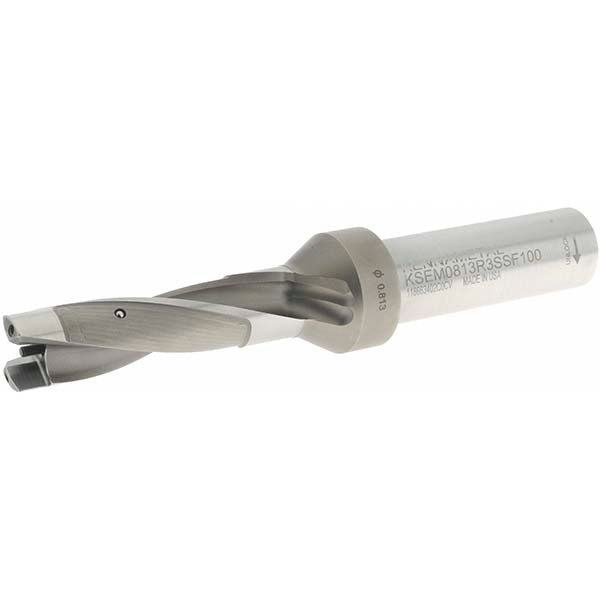

Uses KSEM0813 Inserts, Seat Size 3, 190.50 mm OAL, Coolant Through
Manufacturer
Kennametal
Part number
1505115
Condition
New
Review the specifications below to confirm compatibility with your application.
Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.8126 |
|---|---|
| Minimum Drill Diameter (mm) | 20.64 |
| Maximum Drill Diameter (mm) | 21.14 |
| Maximum Drill Diameter (Decimal Inch) | 0.8323 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 66.00 |
| Maximum Drill Depth (Decimal Inch) | 2.6000 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 3 |
| Shank Diameter (mm) | 25.40 |
| Compatible Insert Style | KSEM0813 |
| Overall Length (mm) | 190.50 |
| Overall Length (Decimal Inch) | 7.5000 |
| Series | KSEM |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| Mfr# | 1505115 |
Please confirm the manufacturer part number and specifications before ordering.
Product Sourcing Notes
1505115 is listed for Kennametal and described as 1505115 Kennametal Replaceable-Tip Drill: 20.64 mm to 21.14 in Specialty Cutting Tooling . Use this page to confirm the part number, availability, product family, and application details before purchasing.
- Manufacturer part number: 1505115
- Manufacturer: Kennametal
- Catalog family: Specialty Cutting Tooling
- Availability: in stock with 2 available
